How to Choose a UPS for Your Desktop PC & Router (2026 Guide)

A power blip lasting a fraction of a second is enough to restart a desktop PC, drop your Wi-Fi and lose the document you were halfway through typing. Storms, brown-outs, tripped circuits and even a neighbour's building work can all cause it. If you work from home, run a small office or simply keep years of photos on a PC, the gap between "the lights flickered" and "I lost an hour of work" is exactly what an uninterruptible power supply (UPS) fills.

The trouble is that UPS listings are full of numbers that do not mean what they first seem to: VA, watts, AVR, line-interactive, hot-swappable. This guide explains them in plain English, shows you a simple method to size a UPS for a desktop PC, monitor and router, and walks through one popular mid-sized option in our range, the PowerShield Defender 1200VA/720W, alongside four alternatives so you can compare properly.

It is written for home offices and small businesses in Australia. If you are protecting server racks or larger equipment, our UPS and battery backup page covers the wider range.

What is a UPS and why it matters

A UPS is a box with a battery, a charger and some electronics that sit between the wall socket and your equipment. While mains power is healthy, your devices run through the UPS as normal. When power dips, spikes or disappears, the UPS switches to its battery within a few milliseconds so your gear keeps running.

The battery is not meant to keep you working for an hour. Its job is to give you enough time to save your work and shut down cleanly, or to ride out very short outages without anything noticing. That matters because sudden power loss can corrupt files, damage a drive that is mid-write, or leave an operating system update half-finished.

The three jobs a UPS does

• Battery backup: keeps devices running during an outage long enough to shut down safely.
• Voltage correction: smooths out sags and surges so equipment sees steadier power.
• Surge protection: absorbs spikes that would otherwise reach your electronics.

The main UPS types

Most home and small-office units are line-interactive. They pass mains power through, correct modest voltage problems with a built-in regulator, and switch to battery when needed. Online (double-conversion) units continuously run your equipment from the battery circuit and are aimed at servers and critical gear, and they are priced considerably higher. For a desktop PC, monitor and router, line-interactive is the sensible starting point.

Key specs explained

Here are the real specifications of our featured model, the PowerShield Defender 1200VA/720W, and what each one means in practice.

Spec	Defender 1200VA/720W	Why it matters
Capacity	1200VA / 720W	The watt figure is the real limit on how much equipment you can connect. Add up your devices in watts, not VA.
Type	Line-interactive with AVR (boost and buck)	AVR corrects low and high mains voltage without draining the battery, which extends battery life.
Outlets	6 Australian sockets	Enough for a PC, one or two monitors, a router and a printer or NAS, without a power board.
Display	LCD	Lets you see load and status at a glance instead of guessing from beeps.
Battery	User-replaceable, described as hot swappable	You can replace an ageing battery yourself rather than sending the whole unit away.
Cooling	Silent operation, no fans	Good for a desk in a quiet room or a bedroom office.
Recovery	Auto restart, off-mode charging, cold start	It restarts when mains returns, keeps charging when switched off and can start on battery alone.
Connectivity	USB with NetGuard software (free download)	Lets a PC shut itself down automatically if you are away from the desk.
Surge protection	Australian outlets for UPS and surge protection	Adds a layer of protection for connected equipment.
Size and weight	Listed as 300 x 494 x 234, 11.88 kg	It is a floor or under-desk unit, not something you would put on a shelf next to a monitor.
Warranty	2 years	Cover for the unit itself. Batteries are a wear item in any UPS.

VA versus watts

VA (volt-amps) is the apparent power figure and watts is the real power figure. A UPS can deliver fewer watts than its VA number, which is why this unit is labelled 1200VA/720W. Always size against the watts.

How to choose a UPS

Choosing a UPS is mostly arithmetic. Work through these steps and you will land on the right size.

Step 1: List what must stay on

Write down only the devices that need power during an outage: the PC, the monitor, the modem and router, and possibly a NAS or external drive. Leave out laser printers, heaters and anything with a motor. Laser printers in particular draw a large burst of power when warming up and are best kept off a UPS.

Step 2: Find each device's wattage

Check the label on the power supply or the specifications page. A PC's power supply rating is the maximum it can deliver, not what it uses day to day, so a plug-in power meter gives a far better picture of your real load. Networking gear is usually small; a router and modem together are often a modest draw compared with a gaming PC.

Step 3: Add safety headroom

Add up the watts, then leave headroom. A common rule of thumb is to keep the connected load at around 60 to 70 per cent of the UPS's watt rating or lower. A UPS running near its limit has less spare capacity for start-up surges and will give shorter runtime.

Step 4: Decide how long you need

Runtime depends on load and battery capacity, and there is no single figure that applies to every setup. If you only need a minute or two to save and shut down, a modest unit is fine. If you need to keep a router running through a longer outage, look at a larger unit or plan for extra battery capacity.

Step 5: Check space and sockets

Make sure the UPS physically fits where you will put it, and that it has enough sockets in the right style. Also consider whether you want a display so you can read the load.

Common mistakes to avoid

• Sizing by VA instead of watts.
• Plugging a laser printer or a heater into the UPS.
• Buying the smallest unit that technically fits, leaving no headroom.
• Ignoring battery age. Sealed lead-acid batteries wear out over time and should be tested and replaced.
• Daisy-chaining a power board into the UPS and overloading it.
• Forgetting the router, so the PC stays on but the internet drops.

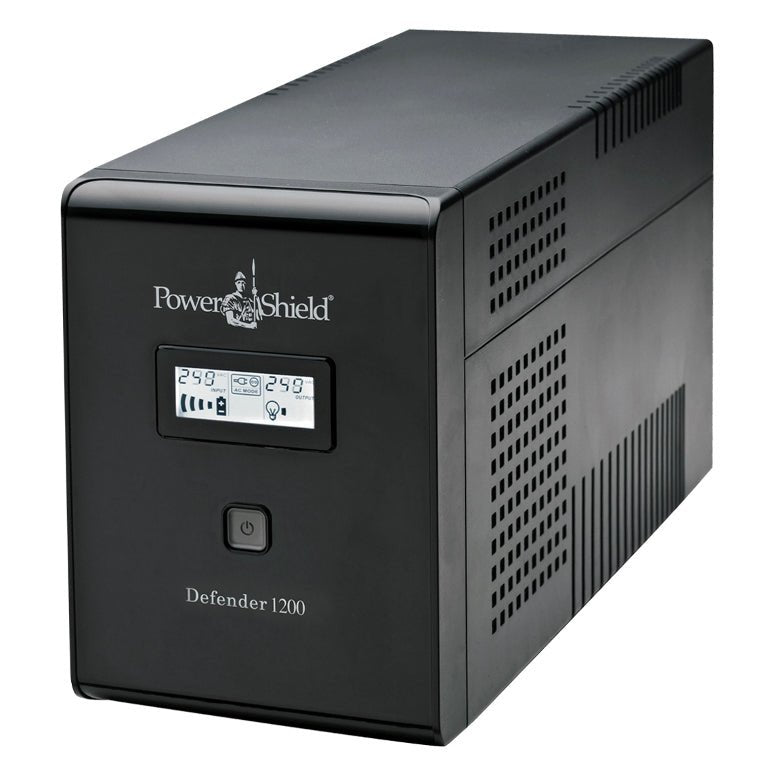

Our pick: PowerShield Defender 1200VA/720W

For most home offices, the PowerShield Defender 1200VA/720W is a well-balanced choice. It is currently $426.99 and sits in the middle of the range: enough capacity for a typical desktop PC, monitor and router, without the price and bulk of a heavy-duty unit.

What it does well

• Six Australian sockets, so you are unlikely to need a power board.
• AVR (boost and buck) to stabilise voltage without constantly using the battery.
• An LCD so you can see status instead of interpreting beeps.
• User-replaceable batteries, which keeps the unit useful for longer.
• Fanless, silent operation.
• Auto restart and cold start, plus USB monitoring with free NetGuard software.

Where it falls short, and who should skip it

• It is a fairly large, heavy unit for the capacity. If you want something you can tuck beside a router, a smaller model may suit you better.
• It is a line-interactive design. If you need continuous double-conversion protection for servers or sensitive equipment, look at an online UPS instead.
• If you have a very powerful gaming PC or workstation with several monitors, check your total watts first. The Defender 1600VA in the table below may be the safer choice.
• If you only need to protect a modem and router, it is more UPS than you need.

Alternatives in our range

These units are all in stock in our range at the time of writing. Prices are current, and the notes below come from the product listings.

Product	Capacity	Key differences	Price	Best for
PowerShield Defender 650VA/390W	650VA / 390W	AVR, LCD, user-replaceable batteries, 2 Australian outlets. Smaller footprint.	$191.99	A single PC or a modem and router
PowerShield SafeGuard 750VA/450W	750VA / 450W	Compact, wall mountable, 6 Australian sockets, fax/modem/LAN surge port, fast charging (90% in 4 hours).	$238.99	Small desks and network gear
PowerShield Defender 1200VA/720W (our pick)	1200VA / 720W	AVR, LCD, 6 Australian sockets, user-replaceable batteries, fanless.	$426.99	Everyday desktop PC, monitor and router
APC Back-UPS 1200VA/650W	1200VA / 650W	APC line-interactive tower with 4 Australian outlets, AVR, lead-acid battery rated 3 to 5 years, 6 ms typical transfer time.	$307.99	Buyers who prefer the APC brand and need fewer sockets
PowerShield Defender 1600VA/960W	1600VA / 960W	Same feature set as the 1200VA with more capacity. Described as ideal for workstations and gaming.	$525.99	Workstations, gaming PCs and heavier loads

The APC Back-UPS 1200VA has a lower watt rating (650W) than the Defender 1200VA (720W), and fewer outlets. The differences matter more than the matching VA number suggests, which is why the watt figure is the one to compare.

Setup and usage tips

1. Let it charge first. Give the battery time to charge before you rely on it, and keep it plugged in.
2. Plug the UPS straight into the wall. Do not connect it through another power board or extension lead.
3. Protect the internet too. Put the modem and router on the UPS so you keep your connection while you shut down.
4. Install the monitoring software. Connect the USB cable and install NetGuard so your PC shuts down automatically if you are away.
5. Test it occasionally. With your work saved, switch off the wall socket for a few seconds to confirm the UPS takes over.
6. Keep it cool and dry. Leave space around it and avoid direct sun, heaters and damp spots.
7. Keep laser printers off it. Use the surge-protected sockets only for gear that needs battery backup.
8. Plan battery replacement. Batteries wear out. Note the install date and replace on schedule.

Who is it for

• Home office workers with a desktop PC, monitor and router.
• Small businesses protecting a reception PC, point-of-sale terminal or small NAS.
• Students and creators who cannot afford to lose unsaved projects.
• Anyone in an area with frequent storms or unreliable mains power.
• Families who keep photos and records on a home PC or network drive.

It is not aimed at server racks, medical equipment or anything that must never lose power, and it is not a generator replacement.

FAQ

How long will a UPS keep my PC running?

It depends on your load and the battery. Lighter loads run longer. Most home UPS units are designed to give you minutes, not hours, which is enough to save and shut down.

Do I need a pure sine wave UPS?

Not always. Some equipment, such as certain power supplies with active power factor correction, works best with a pure sine wave output. Check your equipment manual or manufacturer advice, and look at the output waveform on the product page.

Can I plug a laser printer into a UPS?

It is not recommended. Laser printers draw a large surge while warming up and can overload a UPS quickly.

What does AVR do?

Automatic voltage regulation corrects modest high or low mains voltage without switching to battery, which reduces battery wear.

How often should I replace the battery?

Sealed lead-acid batteries have a limited life, commonly a few years, depending on temperature and use. Replace it if runtime drops noticeably or the unit reports a battery fault. On this model the battery is user-replaceable.

Is a UPS the same as a surge protector?

No. A surge protector only limits spikes. A UPS also gives you battery power and voltage correction. Many UPS units, including this one, include surge protection as well.

Should I choose 1200VA or 1600VA?

Add up the watts of what you plan to connect. If it comes to well under 720W with room to spare, the 1200VA is enough. If you have a powerful PC and several screens, step up to the 1600VA.

Ready to choose?

If the numbers stack up, the PowerShield Defender 1200VA/720W is a solid all-rounder for a home office. You can browse everything in the Power and UPS collection, read more on our UPS and battery backup page, or contact us if you would like help matching a UPS to your setup.
