Gigabyte

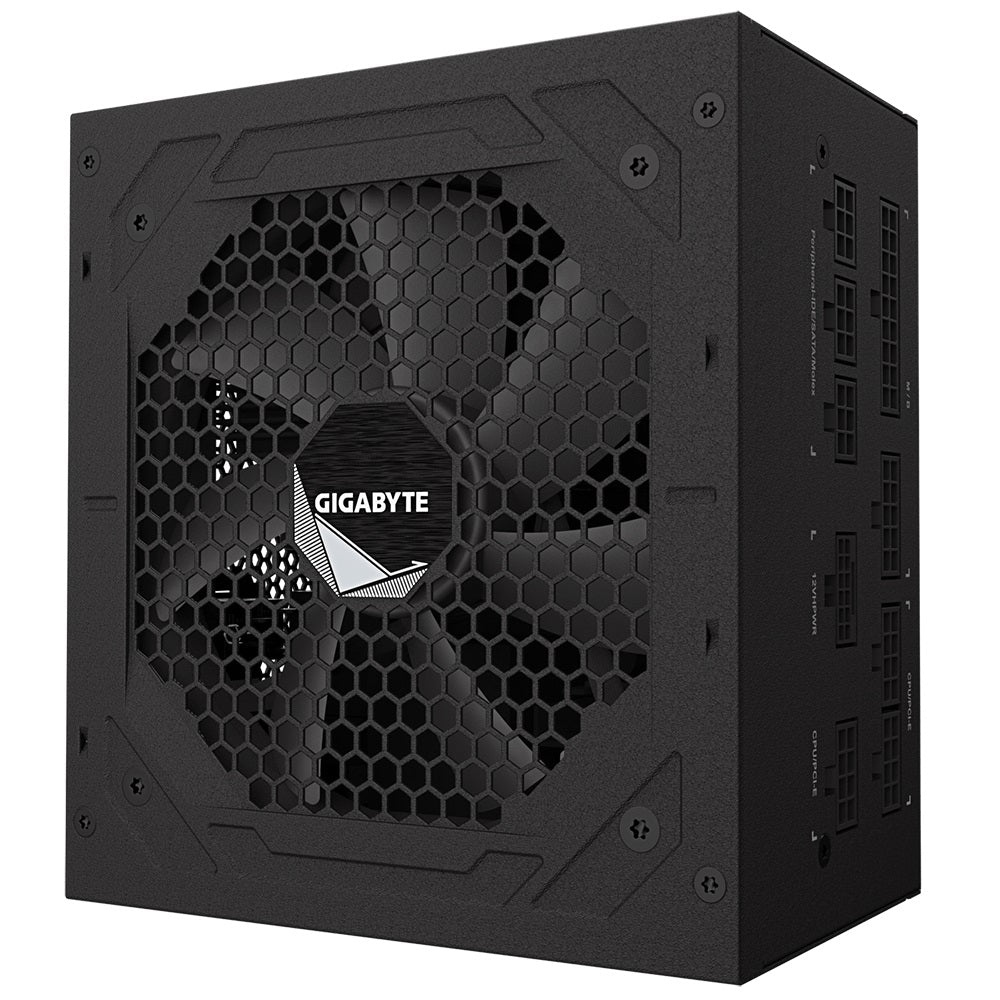

Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB
Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB
Couldn't load pickup availability
Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours Key Features: Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCle Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact design 5 years warranty (Adjusted according to different regions) Specification: Model GP-UD850GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB)fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 12+4 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
- Brand: Gigabyte
- Category: Power Supplies
- Subcategory: ATX/PS2
- SKU: PSG-UD850GMPG5-2.0
Product Specifications
| Manufacturer SKU | GP-UD850GM-PG5-V2 |
|---|---|
| Category Code | PS |
| Length | 258 |
| Width | 212 |
| Height | 120 |
| Weight | 2.72 |
| Warranty | 60 |
| Barcode | gp-ud850gm pg5 v2 |
Alternative Replacements
- PSG-UD850GMPG5
