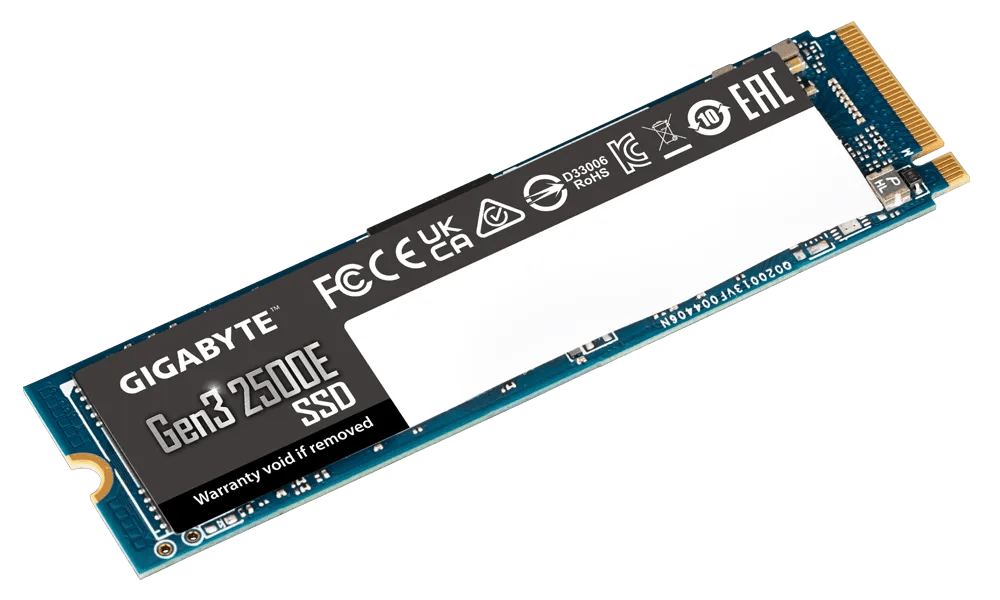

Gigabyte G325E 500G M2 500G PCIe 3.0x4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW

Gigabyte G325E 500G M2 500G PCIe 3.0x4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW Interface PCIe 3.0x4, NVMe1.3 interface Form Factor M.2 2280 Total Capacity 500GB External DDR Cache N/A Sequential Read speed Up to 2300 MB/s Sequential Write speed Up to 1500 MB/s Random Read IOPS Up to 60K Random Write IOPS Up to 240K Dimension 22 x 2.3 x 80 mm Mean time between failure (MTBF) 1.5 million hours Power Consumption (Active) Average R : 2670mW Average W : 3200mW Power Consumption (Idle) Idle : 30mW L1.2 < 5mW Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 3 years or 120TBW. 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

• Brand: Gigabyte
• Category: Hard Disk Drives - SSD
• Subcategory: M.2 NVMe PCIe SSD
• SKU: HBG-G325E-500G-M2

Product Specifications
