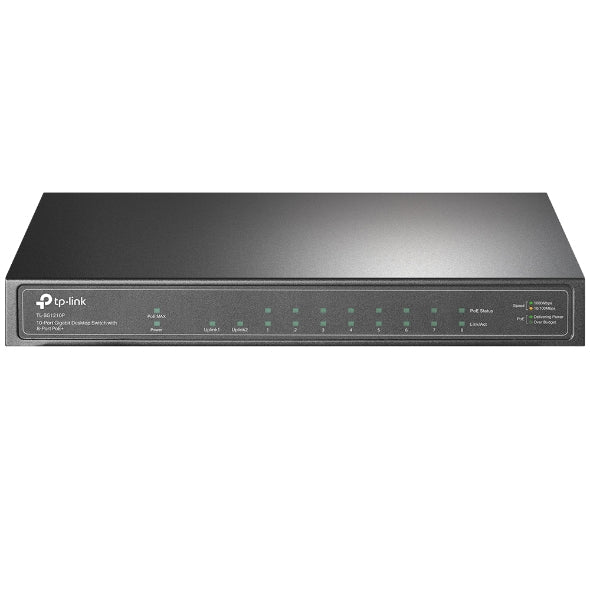

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ IGMP Snooping 1 Gigabit SFP Slot, Fanless

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ 10-Port Gigabit Desktop Switch with 8-Port PoE+ 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port With 8 PoE+ ports, transfers data and power on one single cable Working with IEEE 802.3af/at compliant PDs, expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports Easy to use, with no configuration and installation needed HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth 20 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W Mac Address Table 4K Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward OTHERS Certification CE, FCC, RoHS Package Contents TL-SG1210P, Power Adapter, Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing

• Brand: TP-LINK
• Category: Network - Consumer
• Subcategory: Network Switches
• SKU: NWTL-SG1210P

Product Specifications

Alternative Replacements

• NWTL-SG1210MP
